STM32使用OLED移植U8g2库
发表于：2023-04-09 | 分类： 单片机 STM32

STM32使用OLED移植U8g2库

STM32CubeMX配置

硬件

  • STM32F103C8T6
  • I2C通信OLED 128*64

软件

  • System Core->RCC->HSE->Crystal/Ceramic Resonator

  • System Core->SYS->Debug->Serial Wire

  • Connectivity->I2C1->I2C->I2C I2C Speed Mode 为 Fast Mode

OLED使用I2C通信，不使用GPIO模拟I2C了

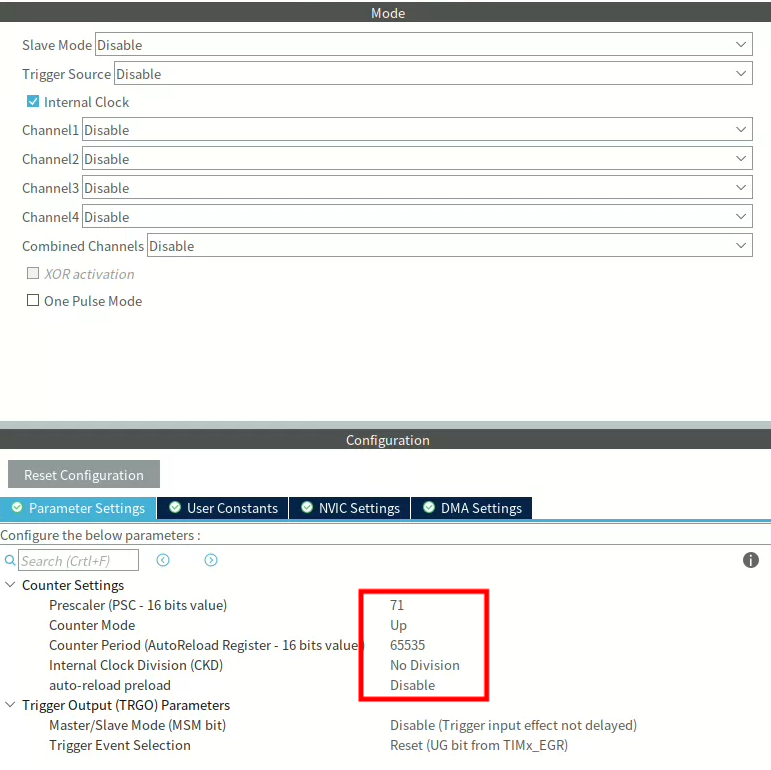

  • Timers->TIM3用于延时用

image-20230405222847950

  • 设置时钟树为72MHz

  • Generate Code

    U8g2库移植

下载

U8g2Github地址: https://github.com/olikraus/u8g2

克隆到本地

1
git clone https://github.com/olikraus/u8g2.git

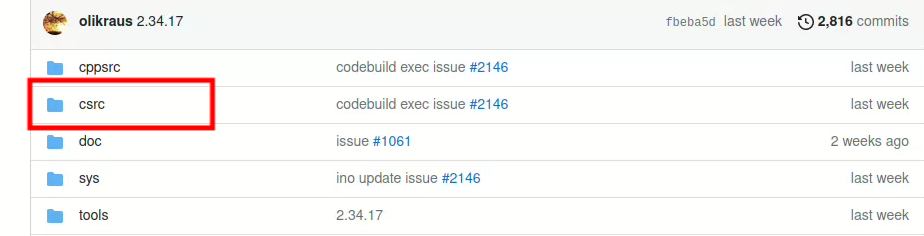

主要用到U8g2库的csrc文件夹

image-20230405220231001

删除多余驱动文件

本次使用的oled为I2C通信，屏幕分辨率为128x64,ssd1306驱动芯片，所以保留u8x8_d_ssd1306_128x64_noname.c文件，而对于其他u8x8_d_xxx_xxx.c的文件删除，注意xxx分别为驱动型号和分辨率！！！

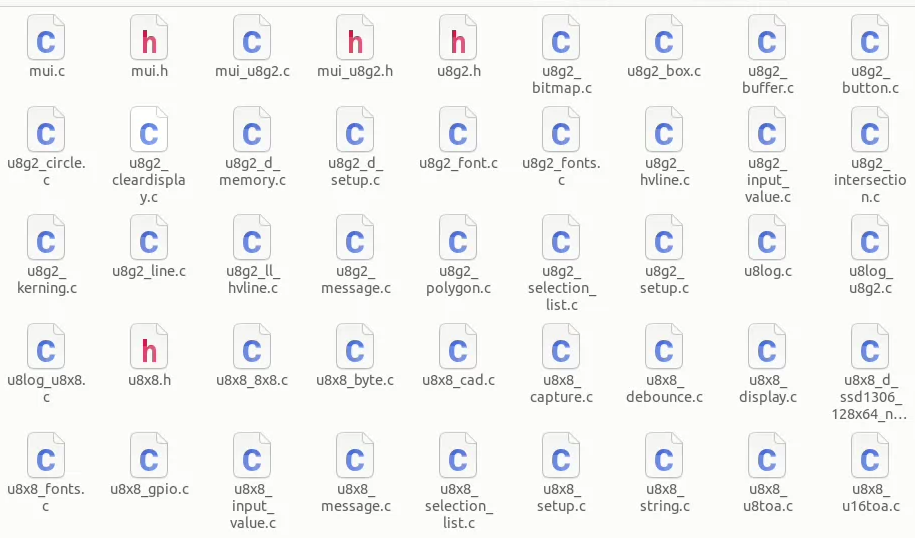

最后保留的文件

image-20230405221042200

精简U8g2程序代码

u8g2_d_setup.c

删除多余函数只保留void u8g2_Setup_ssd1306_i2c_128x64_noname_f函数主体

1
2
3
4
5
6
7
8
void u8g2_Setup_ssd1306_i2c_128x64_noname_f(u8g2_t *u8g2, const u8g2_cb_t *rotation, u8x8_msg_cb byte_cb, u8x8_msg_cb gpio_and_delay_cb)
{
    uint8_t tile_buf_height;
    uint8_t *buf;
    u8g2_SetupDisplay(u8g2, u8x8_d_ssd1306_128x64_noname, u8x8_cad_ssd13xx_fast_i2c, byte_cb, gpio_and_delay_cb);
    buf = u8g2_m_16_8_f(&tile_buf_height);
    u8g2_SetupBuffer(u8g2, buf, tile_buf_height, u8g2_ll_hvline_vertical_top_lsb, rotation);
}

u8g2_d_memory.c

删除多余函数只保留uint8_t *u8g2_m_16_8_f(uint8_t *page_cnt)函数主体

1
2
3
4
5
6
7
8
9
10
11
uint8_t *u8g2_m_16_8_f(uint8_t *page_cnt)
{
#ifdef U8G2_USE_DYNAMIC_ALLOC
    *page_cnt = 8;
  return 0;
#else
    static uint8_t buf[1024];
    *page_cnt = 8;
    return buf;
#endif
}

Clion移植

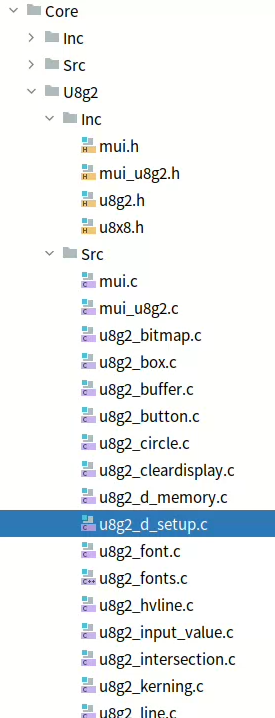

在Core文件夹下新建U8g2/Inc和U8g2/Src文件夹分别储存头文件和源文件

image-20230405221607661

重构CMake项目

在CMakeList.txt包含头文件

1
include_directories(Core/Inc Core/U8g2/Inc....)

编写代码

定时延时微秒函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
void Tims_delay_us(uint32_t nus)
{

    uint16_t  differ = 0xffff-nus-5;
    //设置定时器2的技术初始值
            __HAL_TIM_SetCounter(&htim3,differ);c
    //开启定时器
    HAL_TIM_Base_Start(&htim3);

    while( differ<0xffff-5)
    {
        differ = __HAL_TIM_GetCounter(&htim3);
    };
    //关闭定时器
    HAL_TIM_Base_Stop(&htim3);
}

然后在tim.h中声明

stm32_u8g2文件

新建stm32_u8g2.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
#ifndef __STM32_U8G2_H
#define __STM32_U8G2_H

/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "u8g2.h"
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */

/* USER CODE BEGIN Private defines */

/* USER CODE END Private defines */
#define u8         unsigned char  // ?unsigned char ????
#define MAX_LEN    128  //
#define OLED_ADDRESS  0x78 // oled
#define OLED_CMD   0x00  //
#define OLED_DATA  0x40  //

/* USER CODE BEGIN Prototypes */
uint8_t u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr);
uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr);
void u8g2Init(u8g2_t *u8g2);
void draw(u8g2_t *u8g2);
void testDrawPixelToFillScreen(u8g2_t *u8g2);

#endif

新建stm32_u8g2.c

注意I2C定义变量的修改！！！

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
#include "stm32_u8g2.h"
#include "tim.h"
#include "i2c.h"


uint8_t u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)
{
    /* u8g2/u8x8 will never send more than 32 bytes between START_TRANSFER and END_TRANSFER */
    static uint8_t buffer[128];
    static uint8_t buf_idx;
    uint8_t *data;

    switch (msg)
    {
        case U8X8_MSG_BYTE_INIT:
        {
            /* add your custom code to init i2c subsystem */
            MX_I2C1_Init(); //I2C初始化
        }
            break;

        case U8X8_MSG_BYTE_START_TRANSFER:
        {
            buf_idx = 0;
        }
            break;

        case U8X8_MSG_BYTE_SEND:
        {
            data = (uint8_t *)arg_ptr;

            while (arg_int > 0)
            {
                buffer[buf_idx++] = *data;
                data++;
                arg_int--;
            }
        }
            break;

        case U8X8_MSG_BYTE_END_TRANSFER:
        {
            if (HAL_I2C_Master_Transmit(&hi2c1, OLED_ADDRESS, buffer, buf_idx, 1000) != HAL_OK)
                return 0;
        }
            break;

        case U8X8_MSG_BYTE_SET_DC:
            break;

        default:
            return 0;
    }

    return 1;
}



uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)
{
    switch (msg)
    {
        case U8X8_MSG_DELAY_100NANO: // delay arg_int * 100 nano seconds
            __NOP();
            break;
        case U8X8_MSG_DELAY_10MICRO: // delay arg_int * 10 micro seconds
            for (uint16_t n = 0; n < 320; n++)
            {
                __NOP();
            }
            break;
        case U8X8_MSG_DELAY_MILLI: // delay arg_int * 1 milli second
            HAL_Delay(1);
            break;
        case U8X8_MSG_DELAY_I2C: // arg_int is the I2C speed in 100KHz, e.g. 4 = 400 KHz
            Tims_delay_us(5);
            break;                    // arg_int=1: delay by 5us, arg_int = 4: delay by 1.25us
        case U8X8_MSG_GPIO_I2C_CLOCK: // arg_int=0: Output low at I2C clock pin
            break;                    // arg_int=1: Input dir with pullup high for I2C clock pin
        case U8X8_MSG_GPIO_I2C_DATA:  // arg_int=0: Output low at I2C data pin
            break;                    // arg_int=1: Input dir with pullup high for I2C data pin
        case U8X8_MSG_GPIO_MENU_SELECT:
            u8x8_SetGPIOResult(u8x8, /* get menu select pin state */ 0);
            break;
        case U8X8_MSG_GPIO_MENU_NEXT:
            u8x8_SetGPIOResult(u8x8, /* get menu next pin state */ 0);
            break;
        case U8X8_MSG_GPIO_MENU_PREV:
            u8x8_SetGPIOResult(u8x8, /* get menu prev pin state */ 0);
            break;
        case U8X8_MSG_GPIO_MENU_HOME:
            u8x8_SetGPIOResult(u8x8, /* get menu home pin state */ 0);
            break;
        default:
            u8x8_SetGPIOResult(u8x8, 1); // default return value
            break;
    }
    return 1;
}

//U8g2的初始化，需要调用下面这个u8g2_Setup_ssd1306_128x64_noname_f函数，该函数的4个参数含义：
//u8g2：传入的U8g2结构体
//U8G2_R0：默认使用U8G2_R0即可（用于配置屏幕是否要旋转）
//u8x8_byte_sw_i2c：使用软件IIC驱动，该函数由U8g2源码提供
//u8x8_gpio_and_delay：就是上面我们写的配置函数

void u8g2Init(u8g2_t *u8g2)
{
    u8g2_Setup_ssd1306_i2c_128x64_noname_f(u8g2, U8G2_R0, u8x8_byte_hw_i2c, u8x8_gpio_and_delay); // 初始化u8g2 结构体
    u8g2_InitDisplay(u8g2);                                                                       //
    u8g2_SetPowerSave(u8g2, 0);                                                                   //
    u8g2_ClearBuffer(u8g2);
}


void draw(u8g2_t *u8g2)
{
    u8g2_ClearBuffer(u8g2);

    u8g2_SetFontMode(u8g2, 1); /*字体模式选择*/
    u8g2_SetFontDirection(u8g2, 0); /*字体方向选择*/
    u8g2_SetFont(u8g2, u8g2_font_inb24_mf); /*字库选择*/
    u8g2_DrawStr(u8g2, 0, 20, "U");

    u8g2_SetFontDirection(u8g2, 1);
    u8g2_SetFont(u8g2, u8g2_font_inb30_mn);
    u8g2_DrawStr(u8g2, 21,8,"8");

    u8g2_SetFontDirection(u8g2, 0);
    u8g2_SetFont(u8g2, u8g2_font_inb24_mf);
    u8g2_DrawStr(u8g2, 51,30,"g");
    u8g2_DrawStr(u8g2, 67,30,"\xb2");

    u8g2_DrawHLine(u8g2, 2, 35, 47);
    u8g2_DrawHLine(u8g2, 3, 36, 47);
    u8g2_DrawVLine(u8g2, 45, 32, 12);
    u8g2_DrawVLine(u8g2, 46, 33, 12);

    u8g2_SetFont(u8g2, u8g2_font_4x6_tr);
    u8g2_DrawStr(u8g2, 1,54,"github.com/olikraus/u8g2");

    u8g2_SendBuffer(u8g2);
    HAL_Delay(1000);
}

//画点填充
void testDrawPixelToFillScreen(u8g2_t *u8g2)
{
    int t = 1000;
    u8g2_ClearBuffer(u8g2);

    for (int j = 0; j < 64; j++)
    {
        for (int i = 0; i < 128; i++)
        {
            u8g2_DrawPixel(u8g2,i, j);
        }
    }
    HAL_Delay(1000);
}

test文件

新建test.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
#ifndef __TEST_H
#define __TEST_H

#include "main.h"
#include "u8g2.h"
#include "stdio.h"
void testDrawProcess(u8g2_t *u8g2);
void testShowFont(u8g2_t *u8g2);
void testDrawFrame(u8g2_t *u8g2);
void testDrawRBox(u8g2_t *u8g2);
void testDrawCircle(u8g2_t *u8g2);
void testDrawFilledEllipse(u8g2_t *u8g2);
void testDrawMulti(u8g2_t *u8g2);
void testDrawXBM(u8g2_t *u8g2);

void u8g2DrawTest(u8g2_t *u8g2);

#endif

新建test.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
#include "test.h"

//---------------U8g2测试函数

#define SEND_BUFFER_DISPLAY_MS(u8g2, ms)\
  do {\
    u8g2_SendBuffer(u8g2); \
    HAL_Delay(ms);\
  }while(0);


//进度条显示
void testDrawProcess(u8g2_t *u8g2)
{
    for(int i=10;i<=80;i=i+2)
    {
        u8g2_ClearBuffer(u8g2);

        char buff[20];
        sprintf(buff,"%d%%",(int)(i/80.0*100));

        u8g2_SetFont(u8g2,u8g2_font_ncenB12_tf);
        u8g2_DrawStr(u8g2,16,32,"STM32 U8g2");//字符显示

        u8g2_SetFont(u8g2,u8g2_font_ncenB08_tf);
        u8g2_DrawStr(u8g2,100,49,buff);//当前进度显示

        u8g2_DrawRBox(u8g2,16,40,i,10,4);//圆角填充框矩形框
        u8g2_DrawRFrame(u8g2,16,40,80,10,4);//圆角矩形

        u8g2_SendBuffer(u8g2);
    }
    HAL_Delay(500);
}


//字体测试 数字英文可选用 u8g2_font_ncenB..(粗) 系列字体
//u8g2_font_unifont_t_symbols/u8g2_font_unifont_h_symbols(细 圆润)
void testShowFont(u8g2_t *u8g2)
{
    int t = 1000;
    char testStr[14] = "STM32F103C8T6";

    u8g2_ClearBuffer(u8g2);

    u8g2_SetFont(u8g2,u8g2_font_u8glib_4_tf);
    u8g2_DrawStr(u8g2,0,5,testStr);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);

    u8g2_SetFont(u8g2,u8g2_font_ncenB08_tf);
    u8g2_DrawStr(u8g2,0,30,testStr);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);

    u8g2_SetFont(u8g2,u8g2_font_ncenB10_tr);
    u8g2_DrawStr(u8g2,0,60,testStr);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
}

//画空心矩形
void testDrawFrame(u8g2_t *u8g2)
{
    int t = 1000;
    int x = 16;
    int y = 32;
    int w = 50;
    int h = 20;
    u8g2_ClearBuffer(u8g2);
    u8g2_DrawStr(u8g2,0, 15, "DrawFrame");

    u8g2_DrawFrame(u8g2, x, y, w, h);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawFrame(u8g2, x+w+5, y-10, w-20, h+20);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
}

//画实心圆角矩形
void testDrawRBox(u8g2_t *u8g2)
{
    int t = 1000;
    int x = 16;
    int y = 32;
    int w = 50;
    int h = 20;
    int r = 3;
    u8g2_ClearBuffer(u8g2);
    u8g2_DrawStr(u8g2,0, 15, "DrawRBox");

    u8g2_DrawRBox(u8g2, x, y, w, h, r);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawRBox(u8g2, x+w+5, y-10, w-20, h+20, r);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
}

//画空心圆
void testDrawCircle(u8g2_t *u8g2)
{
    int t = 600;
    int stx = 0;  //画图起始x
    int sty = 16; //画图起始y
    int with = 16;//一个图块的间隔
    int r = 15;   //圆的半径
    u8g2_ClearBuffer(u8g2);
    u8g2_DrawStr(u8g2, 0, 15, "DrawCircle");

    u8g2_DrawCircle(u8g2, stx, sty - 1 + with, r, U8G2_DRAW_UPPER_RIGHT); //右上
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawCircle(u8g2, stx + with, sty, r, U8G2_DRAW_LOWER_RIGHT); //右下
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawCircle(u8g2, stx - 1 + with * 3, sty - 1 + with, r, U8G2_DRAW_UPPER_LEFT); //左上
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawCircle(u8g2, stx - 1 + with * 4, sty, r, U8G2_DRAW_LOWER_LEFT); //左下
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawCircle(u8g2, stx - 1 + with * 2, sty - 1 + with * 2, r, U8G2_DRAW_ALL);//整个圆
    SEND_BUFFER_DISPLAY_MS(u8g2,t);

    u8g2_DrawCircle(u8g2, 32*3, 32, 31, U8G2_DRAW_ALL);//右侧整个圆
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
}

//画实心椭圆
void testDrawFilledEllipse(u8g2_t *u8g2)
{
    int t = 800;
    int with = 16;//一个图块的间隔
    int rx = 27;  //椭圆x方向的半径
    int ry = 22;  //椭圆y方向的半径
    u8g2_ClearBuffer(u8g2);
    u8g2_DrawStr(u8g2,0, 14, "DrawFilledEllipse");

    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawFilledEllipse(u8g2, 0, with, rx, ry, U8G2_DRAW_LOWER_RIGHT);//右下
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawFilledEllipse(u8g2, with * 4 - 1, with, rx, ry, U8G2_DRAW_LOWER_LEFT); //左下
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawFilledEllipse(u8g2, 0, with * 4 - 1, rx, ry, U8G2_DRAW_UPPER_RIGHT); //右上
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawFilledEllipse(u8g2, with * 4 - 1, with * 4 - 1, rx, ry, U8G2_DRAW_UPPER_LEFT); //左上
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
    u8g2_DrawFilledEllipse(u8g2, with * 6, with * 2.5, rx, ry, U8G2_DRAW_ALL);//整个椭圆
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
}

//环形测试
void testDrawMulti(u8g2_t *u8g2)
{
    u8g2_ClearBuffer(u8g2);
    for (int j = 0; j < 64; j+=16)
    {
        for (int i = 0; i < 128; i+=16)
        {
            u8g2_DrawPixel(u8g2, i, j);
            u8g2_SendBuffer(u8g2);
        }
    }

    //实心矩形逐渐变大
    u8g2_ClearBuffer(u8g2);
    for(int i=30; i>0; i-=2)
    {
        u8g2_DrawBox(u8g2,i*2,i,128-i*4,64-2*i);
        u8g2_SendBuffer(u8g2);
    }
    //空心矩形逐渐变小
    u8g2_ClearBuffer(u8g2);
    for(int i=0; i<32; i+=2)
    {
        u8g2_DrawFrame(u8g2,i*2,i,128-i*4,64-2*i);
        u8g2_SendBuffer(u8g2);
    }

    //实心圆角矩形逐渐变大
    u8g2_ClearBuffer(u8g2);
    for(int i=30; i>0; i-=2)
    {
        u8g2_DrawRBox(u8g2,i*2,i,128-i*4,64-2*i,10-i/3);
        u8g2_SendBuffer(u8g2);
    }
    //空心圆角矩形逐渐变小
    u8g2_ClearBuffer(u8g2);
    for(int i=0; i<32; i+=2)
    {
        u8g2_DrawRFrame(u8g2,i*2,i,128-i*4,64-2*i,10-i/3);
        u8g2_SendBuffer(u8g2);
    }

    //实心圆逐渐变大
    u8g2_ClearBuffer(u8g2);
    for(int i=2; i<64; i+=3)
    {
        u8g2_DrawDisc(u8g2,64,32,i, U8G2_DRAW_ALL);
        u8g2_SendBuffer(u8g2);
    }
    //空心圆逐渐变小
    u8g2_ClearBuffer(u8g2);
    for(int i=64; i>0; i-=3)
    {
        u8g2_DrawCircle(u8g2,64,32,i, U8G2_DRAW_ALL);
        u8g2_SendBuffer(u8g2);
    }

    //实心椭圆逐渐变大
    u8g2_ClearBuffer(u8g2);
    for(int i=2; i<32; i+=3)
    {
        u8g2_DrawFilledEllipse(u8g2,64,32, i*2, i, U8G2_DRAW_ALL);
        u8g2_SendBuffer(u8g2);
    }
    //空心椭圆逐渐变小
    u8g2_ClearBuffer(u8g2);
    for(int i=32; i>0; i-=3)
    {
        u8g2_DrawEllipse(u8g2,64,32, i*2, i, U8G2_DRAW_ALL);
        u8g2_SendBuffer(u8g2);
    }
}


// width: 128, height: 48
const unsigned char bilibili[] U8X8_PROGMEM = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x80, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1e, 0xe0, 0x03, 0x00, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x0e, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3c, 0xf0, 0x00, 0x00, 0xf8, 0x00, 0x00, 0x00, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x00, 0xfc, 0xff, 0xff, 0xff, 0x01, 0xfc, 0x00, 0x00, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x03, 0xfc, 0x00, 0x00, 0x3c, 0xc0, 0x0f, 0x00, 0x80, 0x03, 0x00, 0x80, 0xff, 0xff, 0xff, 0xff, 0x07, 0xfc, 0x00, 0x00, 0x3c, 0xc0, 0x0f, 0x00, 0xc0, 0x07, 0x00, 0x80, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xfc, 0x00, 0x00, 0x3c, 0x80, 0x0f, 0x00, 0xc0, 0x07, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x80, 0x0f, 0xf8, 0x00, 0x00, 0x3c, 0x80, 0x0f, 0x00, 0x80, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x00, 0x78, 0x80, 0x0f, 0x00, 0x80, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x00, 0x78, 0x80, 0x0f, 0x00, 0x80, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x80, 0x79, 0x80, 0x0f, 0x00, 0x98, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0xe0, 0x79, 0x9f, 0x0f, 0x00, 0xbe, 0xe7, 0x01, 0xc0, 0x07, 0x10, 0x40, 0x00, 0x1f, 0xf8, 0x00, 0xe0, 0x7b, 0x1f, 0x0f, 0x00, 0xbe, 0xe7, 0x01, 0xc0, 0x87, 0x1f, 0xe0, 0x0f, 0x1f, 0xf8, 0x00, 0xe0, 0x7b, 0x1e, 0x0f, 0x00, 0x3e, 0xe7, 0x01, 0xc0, 0xe7, 0x3f, 0xe0, 0x3f, 0x1f, 0xf0, 0x00, 0xe0, 0x7b, 0x1e, 0x0f, 0x00, 0x3e, 0xe7, 0x01, 0xc0, 0xe7, 0x3f, 0xe0, 0x3f, 0x1f, 0xf0, 0x00, 0x60, 0x71, 0x1e, 0x0f, 0x00, 0x34, 0xe7, 0x01, 0xc0, 0xe7, 0x07, 0x00, 0x3f, 0x1f, 0xf0, 0x00, 0x00, 0x70, 0x00, 0x1f, 0x00, 0x00, 0x07, 0x00, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0xc0, 0x73, 0x1e, 0x1f, 0x00, 0x3c, 0xc7, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0xc0, 0x73, 0x1e, 0x1f, 0x00, 0x7c, 0xe7, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0xc0, 0x73, 0x1e, 0x1f, 0x00, 0x7c, 0xef, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xf0, 0x01, 0xc0, 0x77, 0x1e, 0x1e, 0x00, 0x7c, 0xef, 0x01, 0xc0, 0x07, 0x00, 0x03, 0x00, 0x1f, 0xf0, 0xff, 0xc1, 0xf7, 0x1e, 0xfe, 0x1f, 0x78, 0xef, 0x01, 0xc0, 0x07, 0x70, 0x37, 0x00, 0x1f, 0xe0, 0xff, 0x87, 0xf7, 0x1e, 0xfe, 0xff, 0x78, 0xee, 0x01, 0xc0, 0x07, 0xe0, 0x3f, 0x00, 0x1f, 0xe0, 0xff, 0x9f, 0xf7, 0x1e, 0xfe, 0xff, 0x79, 0xce, 0x01, 0xc0, 0x07, 0xc0, 0x18, 0x00, 0x1f, 0xe0, 0xff, 0xbf, 0xe7, 0x1e, 0xfe, 0xff, 0x7b, 0xce, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xe0, 0xc7, 0xbf, 0xe7, 0x1e, 0xfe, 0xf8, 0x77, 0xce, 0x01, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xe0, 0x0f, 0x3f, 0xe7, 0x1c, 0xfe, 0xf0, 0x77, 0xce, 0x03, 0xc0, 0x07, 0x00, 0x00, 0x00, 0x1f, 0xe0, 0xcf, 0x3f, 0xe7, 0x1c, 0xfe, 0xf8, 0xf3, 0xce, 0x03, 0xc0, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xe0, 0xef, 0x1f, 0xe7, 0x1c, 0xfe, 0xfe, 0xf1, 0xce, 0x03, 0x80, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xe0, 0xff, 0x0f, 0xcf, 0x1c, 0xfc, 0xff, 0xf0, 0xc0, 0x03, 0x00, 0xff, 0xff, 0xff, 0xff, 0x07, 0xe0, 0xff, 0x03, 0x06, 0x1c, 0xfc, 0x7f, 0x60, 0xc0, 0x01, 0x00, 0xfe, 0xff, 0xff, 0xff, 0x03, 0xe0, 0xff, 0x00, 0x00, 0x00, 0xfc, 0x0f, 0x00, 0x00, 0x00, 0x00, 0xfc, 0xff, 0xff, 0xff, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x03, 0x00, 0x1e, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x01, 0x00, 0x0c, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 };
// width: 128, height: 48
const unsigned char three_support[] U8X8_PROGMEM = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x01, 0x00, 0x00, 0x00, 0xe0, 0x07, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0x00, 0xfc, 0x1f, 0x00, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0x00, 0xfe, 0x7f, 0x00, 0x00, 0x00, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0x00, 0x80, 0x1f, 0x00, 0x00, 0x00, 0x00, 0xf0, 0x03, 0x00, 0x00, 0x80, 0x0f, 0xf0, 0x00, 0x00, 0x00, 0xc0, 0x3f, 0x00, 0x00, 0x00, 0x00, 0xf8, 0x03, 0x00, 0x00, 0x80, 0x0f, 0xf0, 0x01, 0x00, 0x00, 0xfc, 0xff, 0x01, 0x00, 0x00, 0xc0, 0xfd, 0xff, 0x00, 0x00, 0xc0, 0x7f, 0xfe, 0x01, 0x00, 0x00, 0xff, 0xff, 0x0f, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x1f, 0xf8, 0x03, 0x00, 0x00, 0xff, 0xff, 0x0f, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x0f, 0xf0, 0x03, 0x00, 0x00, 0xfe, 0xff, 0x07, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x67, 0xe6, 0x03, 0x00, 0x00, 0xfc, 0xff, 0x03, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x01, 0x00, 0xc0, 0x67, 0xe6, 0x03, 0x00, 0x00, 0xf8, 0xff, 0x01, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0xc0, 0x67, 0xe6, 0x03, 0x00, 0x00, 0xf0, 0x7f, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0xc0, 0x67, 0xee, 0x03, 0x00, 0x00, 0xe0, 0x7f, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0x80, 0x7f, 0xfe, 0x01, 0x00, 0x00, 0xe0, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0xff, 0x00, 0x00, 0x80, 0x7f, 0xfe, 0x01, 0x00, 0x00, 0xf0, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0x7f, 0x00, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0x00, 0xf0, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0x7f, 0x00, 0x00, 0x00, 0xfe, 0xff, 0x00, 0x00, 0x00, 0xf8, 0xf9, 0x01, 0x00, 0x00, 0xe0, 0xfd, 0x7f, 0x00, 0x00, 0x00, 0xfe, 0x7f, 0x00, 0x00, 0x00, 0xf8, 0xf0, 0x00, 0x00, 0x00, 0xe0, 0xfd, 0x1f, 0x00, 0x00, 0x00, 0xf8, 0x1f, 0x00, 0x00, 0x00, 0x30, 0xc0, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xc0, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 };

void testDrawXBM(u8g2_t *u8g2)
{
    int t = 1000;
    u8g2_ClearBuffer(u8g2);
    u8g2_DrawStr(u8g2,0, 14, "Draw OLED");

    u8g2_DrawXBM(u8g2,0, 16, 128, 48, bilibili);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);

    u8g2_ClearBuffer(u8g2);
    u8g2_DrawStr(u8g2,0, 14, "bilibili");
    u8g2_DrawXBM(u8g2,0, 16, 128, 48, three_support);
    SEND_BUFFER_DISPLAY_MS(u8g2,t);
}

void u8g2DrawTest(u8g2_t *u8g2)
{
    testDrawProcess(u8g2);
    testDrawMulti(u8g2);
    //testDrawFrame(u8g2);
    //testDrawRBox(u8g2);
    //testDrawCircle(u8g2);
    //testDrawFilledEllipse(u8g2);
    testShowFont(u8g2);
    testDrawXBM(u8g2);

}

主函数

main.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
#include "main.h"
#include "i2c.h"
#include "tim.h"
#include "gpio.h"

#include "oled.h"
#include "u8g2.h"
#include "stdio.h"
#include "stm32_u8g2.h"
#include "test.h"

void SystemClock_Config(void);

int main(void)
{
  HAL_Init();
  SystemClock_Config();
  MX_GPIO_Init();
  MX_I2C1_Init();
  MX_TIM3_Init();
  u8g2_t u8g2;
  u8g2Init(&u8g2);

  while (1)
  {
      u8g2_FirstPage(&u8g2);
      do
      {
          draw(&u8g2);

          u8g2DrawTest(&u8g2);
      } while (u8g2_NextPage(&u8g2));
}

运行效果

[video(video-zNYN4enW-1680706473582)(type-bilibili)(url-https://www.bilibili.com/blackboard/webplayer/embed-whitelist-other.html?aid=739489130&bvid=BV1Wk4y1q7G2&cid=1079979028&page=1)(image-https://img-blog.csdnimg.cn/editor-video.png)(title-STM32HAL库移植U8g2)]

参考文章

C/C++ STM32
上一篇:
OpenMV初体验
下一篇:
Ubuntu添加桌面图标快捷方式
本文目录
本文目录
    •

    Copyright © 2019 - 2020 yuang01 | Powered by Hexo | Theme Bamboo

    本站总访问量： 次 |
