ROS-Moveit使用程序控制机械臂轨迹规划（三）
发表于：2023-07-13 | 分类： Linux ROS

在工作空间/src目录新建功能包moveit_project

添加依赖rospy moveit_commander control_msgs

新建文件夹scripts

在scripts文件夹中新建

1
2
3
4
moveit_fk_demo.py
moveit_ik_demo.py
moveit_line_demo.py
moveit_cycle_demo.py

然后在scripts中打开终端

添加权限sudo chmod +x *.py

更改CMakeList.txt

1
2
3
4
5
6
7
catkin_install_python(PROGRAMS
  scripts/moveit_fk_demo.py
  scripts/moveit_ik_demo.py
  scripts/moveit_line_demo.py
  scripts/moveit_cycle_demo.py
  DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}
)

根据关节角度控制机械臂

moveit_fk_demo.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy, sys
import moveit_commander
from control_msgs.msg import GripperCommand

class MoveItFkDemo:
    def __init__(self):
        # 初始化move_group的API
        moveit_commander.roscpp_initialize(sys.argv)

        # 初始化ROS节点
        rospy.init_node('moveit_fk_demo', anonymous=True)

        # 初始化需要使用move group控制的机械臂中的arm group
        arm = moveit_commander.MoveGroupCommander('arm_group')

        # 初始化需要使用move group控制的机械臂中的gripper group
        gripper = moveit_commander.MoveGroupCommander('hand_group')

        # 设置机械臂和夹爪的允许误差值
        arm.set_goal_joint_tolerance(0.001)
        gripper.set_goal_joint_tolerance(0.001)

        # 控制机械臂先回到初始化位置
        arm.set_named_target('zero_pose')
        arm.go()
        rospy.sleep(2)


        # 设置机械臂的目标位置，使用六轴的位置数据进行描述（单位：弧度）
        joint_positions = [3.14, 0.90, 0.84, 0, 1.59, 1.52]
        arm.set_joint_value_target(joint_positions)

        # 控制机械臂完成运动
        arm.go()
        rospy.sleep(1)

        # 设置夹爪的目标位置，并控制夹爪运动
        gripper.set_joint_value_target([0.03, -0.03])
        gripper.go()
        rospy.sleep(1)

        # 关闭并退出moveit
        moveit_commander.roscpp_shutdown()
        moveit_commander.os._exit(0)

if __name__ == "__main__":
    try:
        MoveItFkDemo()
    except rospy.ROSInterruptException:
        pass

根据末端位姿控制机械臂

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy, sys
import moveit_commander
from moveit_msgs.msg import RobotTrajectory
from trajectory_msgs.msg import JointTrajectoryPoint

from geometry_msgs.msg import PoseStamped, Pose
from tf.transformations import euler_from_quaternion, quaternion_from_euler

class MoveItIkDemo:
    def __init__(self):
        # 初始化move_group的API
        moveit_commander.roscpp_initialize(sys.argv)

        # 初始化ROS节点
        rospy.init_node('moveit_ik_demo')

        # 初始化需要使用move group控制的机械臂中的arm group
        arm = moveit_commander.MoveGroupCommander('arm_group')

        end_effector = arm.get_end_effector_link()

        reference_frame = "base_link"
        arm.set_pose_reference_frame(reference_frame)

        arm.allow_replanning(True)
        # 设置位置（米）和姿态（、弧度）允许误差
        arm.set_goal_position_tolerance(0.001)
        arm.set_goal_orientation_tolerance(0.01)
        # 设置允许最大速度和加速度
        arm.set_max_acceleration_scaling_factor(0.5)
        arm.set_max_velocity_scaling_factor(0.5)
        # 回到初始位置
        arm.set_named_target("zero_pose")
        arm.go()
        rospy.sleep(2)
        #设置机械臂工作空间中的目标位姿，位置使用x/y/z坐标描述
        # 姿态使用四元数描述，基于base_link坐标系
        target_pose = PoseStamped()
        target_pose.header.frame_id = reference_frame
        target_pose.header.stamp = rospy.Time.now()
        target_pose.pose.position.x = 0.5
        target_pose.pose.position.y = 0.5
        target_pose.pose.position.z = 0.5
        target_pose.pose.orientation.x = 0.911822
        target_pose.pose.orientation.y = -0.0269758
        target_pose.pose.orientation.z = 0.285694
        target_pose.pose.orientation.w = -0.293653
        # 设置机器臂当前的状态作为运动初始状态
        arm.set_start_state_to_current_state()

        # 设置机械臂终端运动的目标位姿
        arm.set_pose_target(target_pose, end_effector)

        # 规划运动路径
        plan_success,traj,planning_time,error_code=arm.plan()

        # 按照规划的运动路径控制机械臂运动
        arm.execute(traj)
        rospy.sleep(1)

        # 控制机械臂终端向右移动5cm
        arm.shift_pose_target(1, -0.05, end_effector)
        arm.go()
        rospy.sleep(1)

        # # 控制机械臂终端反向旋转90度
        arm.shift_pose_target(3, -1.57, end_effector)
        arm.go()
        rospy.sleep(1)

        # # 控制机械臂回到初始化位置
        arm.set_named_target('zero_pose')
        arm.go()

        # 关闭并退出moveit
        moveit_commander.roscpp_shutdown()
        moveit_commander.os._exit(0)

if __name__ == "__main__":
    try:
        MoveItIkDemo()
    except rospy.ROSInterruptException:
        pass

画正方形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy, sys
import moveit_commander
from moveit_commander import MoveGroupCommander
from geometry_msgs.msg import Pose
from copy import deepcopy

class MoveItCartesianDemo:
    def __init__(self):
        # 初始化move_group的API
        moveit_commander.roscpp_initialize(sys.argv)

        # 初始化ROS节点
        rospy.init_node('moveit_line_demo', anonymous=True)

        # 初始化需要使用move group控制的机械臂中的arm group
        arm = MoveGroupCommander('arm_group')

        # 当运动规划失败后，允许重新规划
        arm.allow_replanning(True)

        # 设置目标位置所使用的参考坐标系
        arm.set_pose_reference_frame('base_link')

        # 设置位置(单位：米)和姿态（单位：弧度）的允许误差
        arm.set_goal_position_tolerance(0.001)
        arm.set_goal_orientation_tolerance(0.001)

        # 设置允许的最大速度和加速度
        arm.set_max_acceleration_scaling_factor(0.5)
        arm.set_max_velocity_scaling_factor(0.5)

        # 获取终端link的名称
        end_effector_link = arm.get_end_effector_link()

        # 控制机械臂先回到初始化位置
        arm.set_named_target('zero_pose')
        arm.go()
        rospy.sleep(1)

        # 获取当前位姿数据最为机械臂运动的起始位姿
        start_pose = arm.get_current_pose(end_effector_link).pose

        # 初始化路点列表
        waypoints = []

        # # 将初始位姿加入路点列表
        # waypoints.append(start_pose)

        # 设置路点数据，并加入路点列表
        wpose = deepcopy(start_pose)

        wpose.position.x += 0.20
        waypoints.append(deepcopy(wpose))
        wpose.position.z -= 0.2
        waypoints.append(deepcopy(wpose))
        wpose.position.x += 0.20
        waypoints.append(deepcopy(wpose))
        wpose.position.y += 0.20
        waypoints.append(deepcopy(wpose))
        wpose.position.x -= 0.20
        waypoints.append(deepcopy(wpose))
        wpose.position.y -= 0.20
        waypoints.append(deepcopy(wpose))
        wpose.position.z += 0.2
        waypoints.append(deepcopy(wpose))
        wpose.position.x -= 0.20
        waypoints.append(deepcopy(wpose))


        fraction = 0.0   #路径规划覆盖率
        maxtries = 100   #最大尝试规划次数
        attempts = 0     #已经尝试规划次数

		# 设置机器臂当前的状态作为运动初始状态
        arm.set_start_state_to_current_state()

		# 尝试规划一条笛卡尔空间下的路径，依次通过所有路点
        while fraction < 1.0 and attempts < maxtries:
            (plan, fraction) = arm.compute_cartesian_path (
		                    waypoints,   # waypoint poses，路点列表
		                    0.01,        # eef_step，终端步进值
		                    0.0,         # jump_threshold，跳跃阈值
		                    True)        # avoid_collisions，避障规划

		    # 尝试次数累加
            attempts += 1

                # 打印运动规划进程
            if attempts % 10 == 0:
                rospy.loginfo("Still trying after " + str(attempts) + " attempts...")

            # 如果路径规划成功（覆盖率100%）,则开始控制机械臂运动
        if fraction == 1.0:
            rospy.loginfo("Path computed successfully. Moving the arm.")
            arm.execute(plan)
            rospy.loginfo("Path execution complete.")
            # 如果路径规划失败，则打印失败信息
        else:
            rospy.loginfo("Path planning failed with only " + str(fraction) + " success after " + str(maxtries) + " attempts.")

            rospy.sleep(1)

        # 控制机械臂先回到初始化位置
        arm.set_named_target('zero_pose')
        arm.go()
        rospy.sleep(2)

        # 关闭并退出moveit
        moveit_commander.roscpp_shutdown()
        moveit_commander.os._exit(0)

if __name__ == "__main__":
    try:
        MoveItCartesianDemo()
    except rospy.ROSInterruptException:
        pass

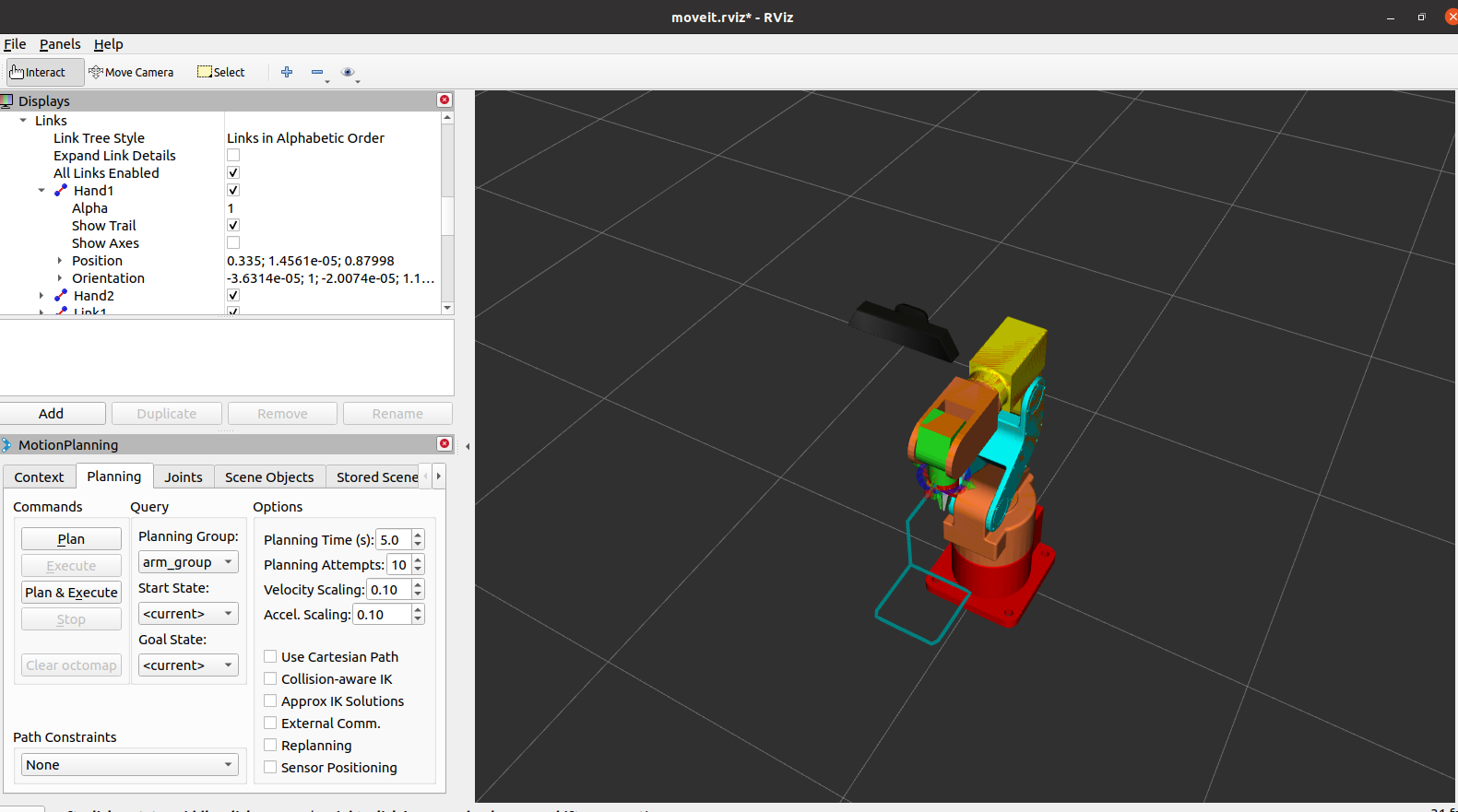

image-20230712155040962

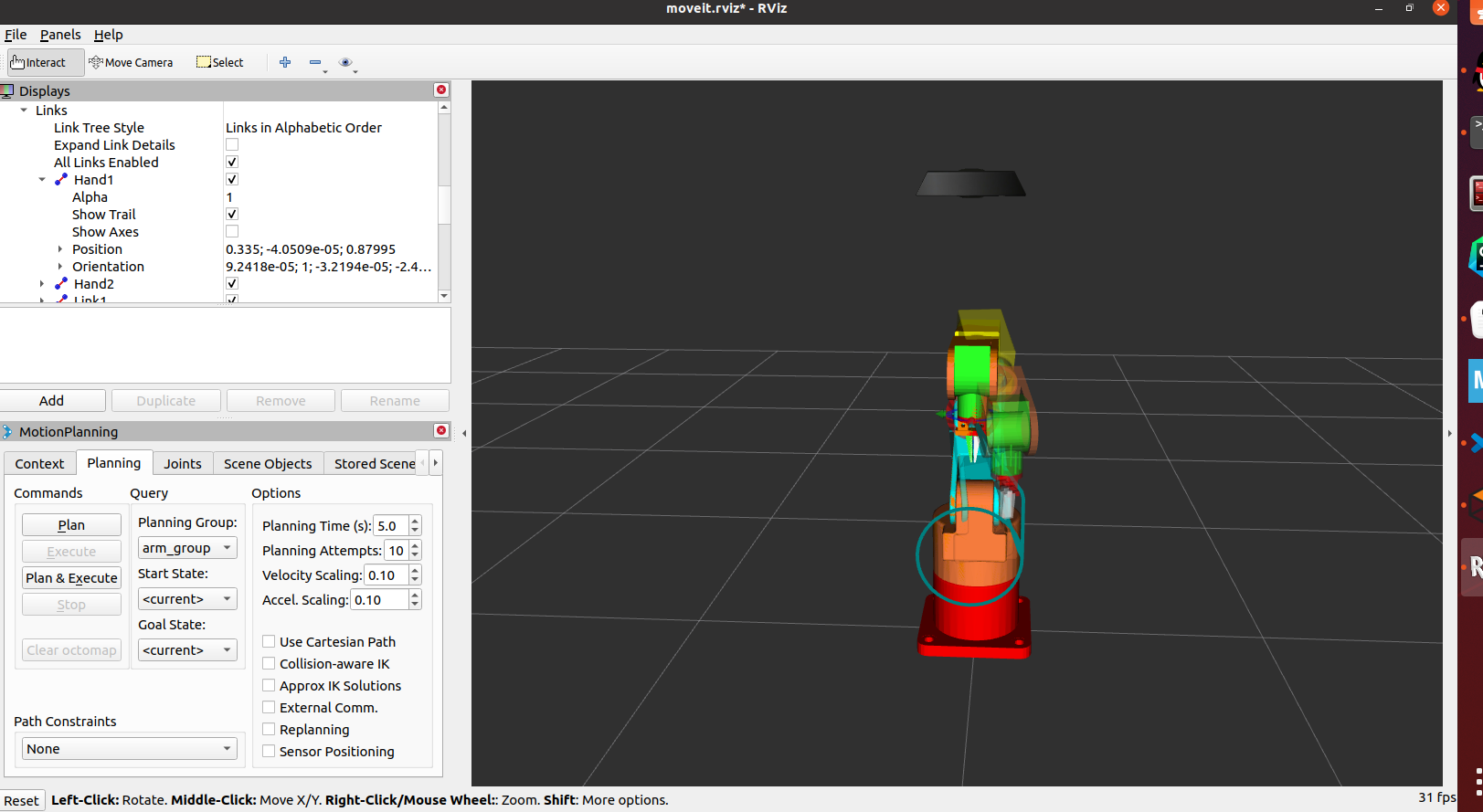

画圆形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy, sys
import moveit_commander
from moveit_commander import MoveGroupCommander
from geometry_msgs.msg import Pose, PoseStamped
from copy import deepcopy

import math
import numpy

class MoveItCartesianDemo:
    def __init__(self):
        # 初始化move_group的API
        moveit_commander.roscpp_initialize(sys.argv)

        # 初始化ROS节点
        rospy.init_node('moveit_cycle_demo', anonymous=True)



        # 初始化需要使用move group控制的机械臂中的arm group
        arm = MoveGroupCommander('arm_group')

        # 当运动规划失败后，允许重新规划
        arm.allow_replanning(True)

        # 设置目标位置所使用的参考坐标系
        reference_frame = 'base_link'
        arm.set_pose_reference_frame('base_link')

        # 设置位置(单位：米)和姿态（单位：弧度）的允许误差
        arm.set_goal_position_tolerance(0.001)
        arm.set_goal_orientation_tolerance(0.001)

        # 设置允许的最大速度和加速度
        arm.set_max_acceleration_scaling_factor(0.5)
        arm.set_max_velocity_scaling_factor(0.5)

        # 获取终端link的名称
        end_effector_link = arm.get_end_effector_link()

        # 控制机械臂先回到初始化位置
        arm.set_named_target('zero_pose')
        arm.go()
        rospy.sleep(1)

        # 设置路点数据，并加入路点列表

        target_pose = PoseStamped()
        target_pose.header.frame_id = reference_frame
        target_pose.header.stamp = rospy.Time.now()
        target_pose.pose.position.x = 0.5
        target_pose.pose.position.y = 0
        target_pose.pose.position.z = 0.5
        target_pose.pose.orientation.x = 0.707
        target_pose.pose.orientation.y = 0.7071
        target_pose.pose.orientation.z = 0
        target_pose.pose.orientation.w = 0

        # 设置机械臂终端运动的目标位姿
        arm.set_pose_target(target_pose, end_effector_link)
        arm.go()

        # 初始化路点列表
        waypoints = []

        # 将圆弧上的路径点加入列表
        waypoints.append(target_pose.pose)

        centerA = target_pose.pose.position.y
        centerB = target_pose.pose.position.z
        radius = 0.1
        for th in numpy.arange(0, 6.28, 0.02):
            target_pose.pose.position.y = centerA + 1.5*radius * math.cos(th)
            target_pose.pose.position.z = centerB + 1.5*radius * math.sin(th)
            wpose = deepcopy(target_pose.pose)
            waypoints.append(deepcopy(wpose))

        wpose.position.z += 0.2
        waypoints.append(deepcopy(wpose))

        fraction = 0.0   #路径规划覆盖率
        maxtries = 100   #最大尝试规划次数
        attempts = 0     #已经尝试规划次数

        # 设置机器臂当前的状态作为运动初始状态
        arm.set_start_state_to_current_state()

        # 尝试规划一条笛卡尔空间下的路径，依次通过所有路点
        while fraction < 1.0 and attempts < maxtries:
            (plan, fraction) = arm.compute_cartesian_path (
                                waypoints,   # waypoint poses，路点列表
                                0.01,        # eef_step，终端步进值
                                0.0,         # jump_threshold，跳跃阈值
                                True)        # avoid_collisions，避障规划

                # 尝试次数累加
            attempts += 1

                # 打印运动规划进程
            if attempts % 10 == 0:
                rospy.loginfo("Still trying after " + str(attempts) + " attempts...")

        # 如果路径规划成功（覆盖率100%）,则开始控制机械臂运动
        if fraction == 1.0:
            rospy.loginfo("Path computed successfully. Moving the arm.")
            arm.execute(plan)
            rospy.loginfo("Path execution complete.")
        # 如果路径规划失败，则打印失败信息
        else:
            rospy.loginfo("Path planning failed with only " + str(fraction) + " success after " + str(maxtries) + " attempts.")

            rospy.sleep(1)

        # 控制机械臂先回到初始化位置
        arm.set_named_target('zero_pose')
        arm.go()
        rospy.sleep(1)

        # 关闭并退出moveit
        moveit_commander.roscpp_shutdown()
        moveit_commander.os._exit(0)

if __name__ == "__main__":
    try:
        MoveItCartesianDemo()
    except rospy.ROSInterruptException:
        pass

image-20230712155145190

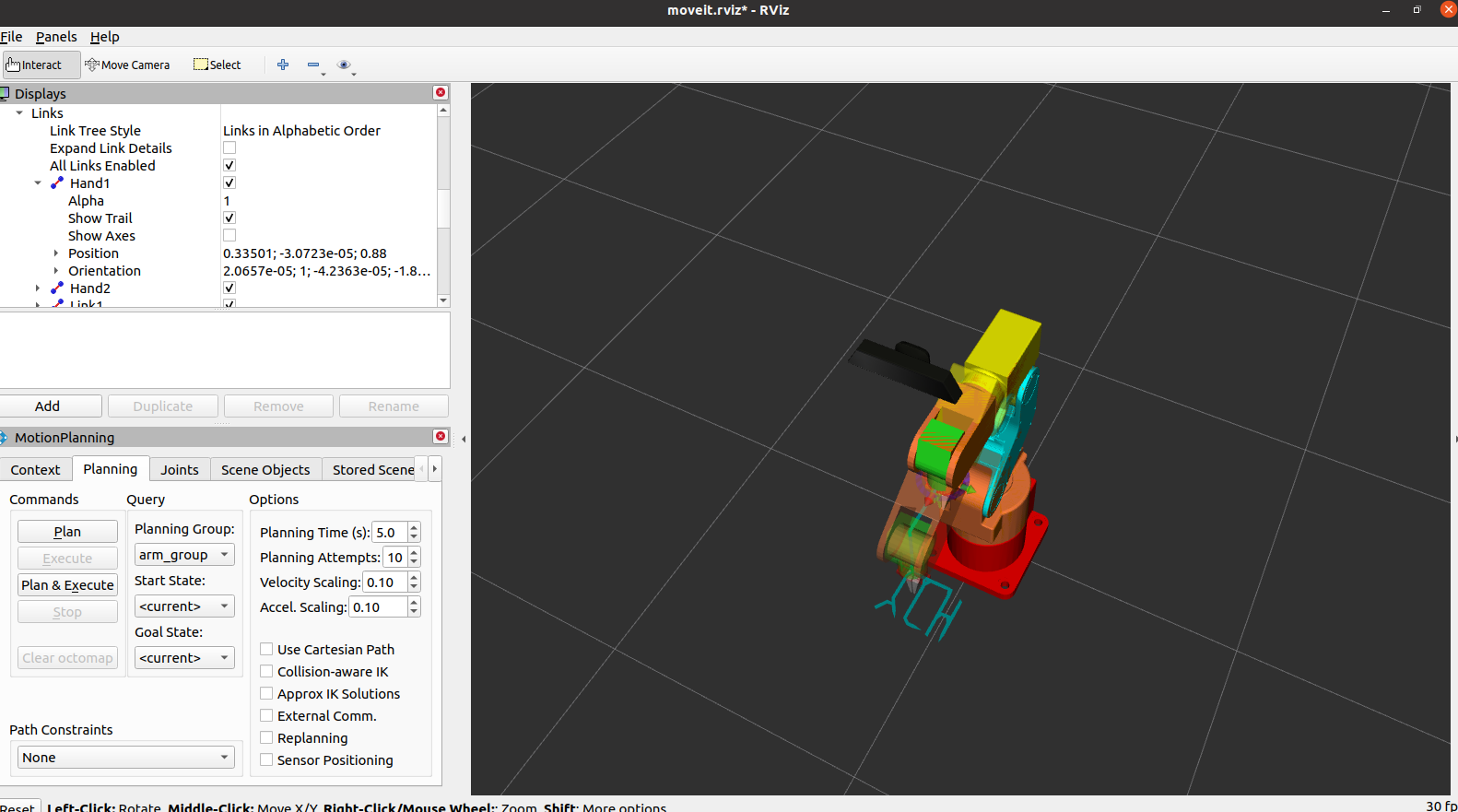

还可以根据自己的喜好，让机械臂在笛卡尔空间作不同的运动。

image-20230712155425882

Linux Ubuntu ROS
上一篇:
ROS-Moveit-ABORTED_CONTROL_FAILED
下一篇:
ROS-Moveit和Gazebo联合仿真（二）
本文目录
本文目录
    •

    Copyright © 2019 - 2020 yuang01 | Powered by Hexo | Theme Bamboo

    本站总访问量： 次 |
