ROS-Moveit和Gazebo联合仿真（二）
发表于：2023-07-13 | 分类： Linux ROS

URDF功能包配置

config

首先在SW2URDF生成的功能包下Config目录下新建文件joint_trajectory_controller.yaml

1
2
3
4
5
6
7
8
9
10
11
robot_arm_controller:
  type: "position_controllers/JointTrajectoryController"
  joints: [joint1, joint2, joint3, joint4, joint5, joint6]

hand_ee_controller:
  type: "position_controllers/JointTrajectoryController"
  joints: [joint_hand1, joint_hand2]

joint_state_controller:
  type: "joint_state_controller/JointStateController"
  publish_rate: 50

launch

在launch文件目录下新建arm_urdf.launch文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
<launch>
	<arg name="arg_x" default="0.00" />
	<arg name="arg_y" default="0.00" />
	<arg name="arg_z" default="0.00" />
	<arg name="arg_R" default="0.00" />
	<arg name="arg_P" default="0.00" />
	<arg name="arg_Y" default="0.00" />

	<!--Urdf file path-->
	<param name="robot_description" textfile="$(find ros_robot_arm)/urdf/ros_robot_arm.urdf"/>

	<!--spawn a empty gazebo world-->
	<include file="$(find gazebo_ros)/launch/empty_world.launch" />
	<node name="tf_footprint_base" pkg="tf" type="static_transform_publisher" args="0 0 0 0 0 0 base_link base_footprint 40" />

	<!--spawn model-->
	<node name="spawn_urdf" pkg="gazebo_ros" type="spawn_model" args="-x $(arg arg_x) -y $(arg arg_y) -z $(arg arg_z) -Y $(arg arg_Y) -param robot_description -urdf -model ros_robot_arm -J joint1 0.0 -J joint2 0.0 -J joint3 0.0 -J joint4 0.0 -J joint5 0.0 -J joint6 0.0 -J joint_hand1 0.0 -J joint_hand2 0.0" />

	<!--Load and launch the joint trajectory controller-->
	<rosparam file ="$(find ros_robot_arm)/config/joint_trajectory_controller.yaml" command="load"/>
	<node name= "controller_spawner" pkg= "controller_manager" type="spawner" respawn="false" output="screen" args="joint_state_controller robot_arm_controller hand_ee_controller"/>

	<!-- Robot State Publisher for TF of each joint: publishes all the current states of the joint, then RViz can visualize -->
	<node name="robot_state_publisher" pkg="robot_state_publisher" type="robot_state_publisher" respawn="false" output="screen"/>
</launch>

CMakeLists.txt

添加如下信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
find_package(catkin REQUIRED
		message_generation
		roscpp
		rospy
		std_msgs
		geometry_msgs
		urdf
		xacro
		message_generation
)

catkin_package(CATKIN_DEPENDS
		geometry_msgs
		roscpp
		rospy
		std_msgs
)

package.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
<package format="2">
  <name>ros_robot_arm</name>
  <version>1.0.0</version>
  <description>
    <p>URDF Description package for ros_robot_arm</p>
    <p>This package contains configuration data, 3D models and launch files
for ros_robot_arm robot</p>
  </description>
  <author>TODO</author>
  <maintainer email="TODO@email.com" />
  <license>BSD</license>
  <buildtool_depend>catkin</buildtool_depend>

  <build_depend>message_generation</build_depend>
  <build_depend>roscpp</build_depend>
  <build_depend>rospy</build_depend>
  <build_depend>std_msgs</build_depend>
  <build_depend>geometry_msgs</build_depend>
  <build_depend>urdf</build_depend>
  <build_depend>xacro</build_depend>
  <build_depend>message_generation</build_depend>

  <depend>roslaunch</depend>
  <depend>robot_state_publisher</depend>
  <depend>rviz</depend>
  <depend>joint_state_publisher_gui</depend>
  <depend>gazebo</depend>
  <depend>moveit_simple_controller_manager</depend>


  <build_export_depend>roscpp</build_export_depend>
  <build_export_depend>rospy</build_export_depend>
  <build_export_depend>std_msgs</build_export_depend>
  <build_export_depend>geometry_msgs</build_export_depend>
  <build_export_depend>urdf</build_export_depend>
  <build_export_depend>xacro</build_export_depend>
  <exec_depend>roscpp</exec_depend>
  <exec_depend>rospy</exec_depend>
  <exec_depend>std_msgs</exec_depend>
  <exec_depend>geometry_msgs</exec_depend>
  <exec_depend>urdf</exec_depend>
  <exec_depend>xacro</exec_depend>
  <exec_depend>message_runtime</exec_depend>

  <export>
    <architecture_independent />
  </export>
</package>

urdf文件

为机器人的各个joint添加控制器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
<transmission name="link1_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint1">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link1_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link2_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint2">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link2_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link3_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint3">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link3_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link4_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint4">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link4_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link5_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint5">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link5_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link6_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint6">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link6_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link_hand1_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint_hand1">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link_hand1_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <transmission name="link_hand2_trans">
    <type>transmission_interface/SimpleTransmission</type>
    <joint name="joint_hand2">
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </joint>
    <actuator name="link_hand2_motor">
      <mechanicalReduction>50</mechanicalReduction>
      <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
    </actuator>
  </transmission>

  <gazebo>
    <plugin name="control" filename="libgazebo_ros_control.so">
      <robotNamespace>/</robotNamespace>
    </plugin>
  </gazebo>

<gazebo reference="base_link">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Red</material>
  </gazebo>

  <gazebo reference="Link1">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Orange</material>
  </gazebo>

  <gazebo reference="Link2">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Turquoise</material>
  </gazebo>

  <gazebo reference="Link3">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Yellow</material>
  </gazebo>

  <gazebo reference="Link4">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Orange</material>
  </gazebo>

  <gazebo reference="Link5">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Green</material>
  </gazebo>

  <gazebo reference="Link6">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Red</material>
  </gazebo>

  <gazebo reference="Hand1">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Grey</material>
  </gazebo>

  <gazebo reference="Hand2">
    <selfCollide>true</selfCollide>
    <material>Gazebo/Grey</material>
  </gazebo>

Moveit功能包配置

config

修改ros_controllers.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
moveit_sim_hw_interface:
  joint_model_group: hand_group
  joint_model_group: hand_close

generic_hw_control_loop:
  loop_hz: 300
  cycle_time_error_threshold: 0.01

hardware_interface:
  joints:
    - joint1
    - joint2
    - joint3
    - joint4
    - joint5
    - joint6
    - joint_hand1
    - joint_hand2
  sim_control_mode: 1 # 0: position, 1: velocity

joint_state_controller:
  type: joint_state_controller/JointStateController
  publish_rate: 50
controller_list:
  []

在config文件目录下新建new_ros_controllers.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# JointTrajectoryController
controller_list:
  - name: robot_arm_controller
    action_ns: follow_joint_trajectory
    type: FollowJointTrajectory
    default: true
    joints:
    - joint1
    - joint2
    - joint3
    - joint4
    - joint5
    - joint6
  - name: hand_ee_controller
    action_ns: follow_joint_trajectory
    type: FollowJointTrajectory
    joints:
    - joint_hand1
    - joint_hand2

launch

修改launch文件目录下simple_moveit_controller_manager.launch.xml

将ros_controllers.yaml改为new_ros_controllers.yaml

1
2
3
4
5
6
7
8
<launch>
  <!-- Define the MoveIt controller manager plugin to use for trajectory execution -->
  <param name="moveit_controller_manager" value="moveit_simple_controller_manager/MoveItSimpleControllerManager" />

  <!-- Load controller list to the parameter server -->
  <rosparam file="$(find moveit_ros_robot_arm)/config/simple_moveit_controllers.yaml" />
  <rosparam file="$(find moveit_ros_robot_arm)/config/new_ros_controllers.yaml" />
</launch>

在launch文件目录下新建full_robot_arm_sim.launch

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<launch>
	<!-- Launch Your robot arms launch file which loads the robot in Gazebo and spawns the controllers -->
	<include file = "$(find ros_robot_arm)/launch/arm_urdf.launch" />

	<!-- Launch Moveit Move Group Node -->
	<include file = "$(find moveit_ros_robot_arm)/launch/move_group.launch" />

	<!-- Run Rviz and load the default configuration to see the state of the move_group node -->
	<arg name="use_rviz" default="true" />
	<include file="$(find moveit_ros_robot_arm)/launch/moveit_rviz.launch" if="$(arg use_rviz)">
		<arg name="rviz_config" value="$(find moveit_ros_robot_arm)/launch/moveit.rviz"/>
	</include>

</launch>

运行

1
2
source ./devel/setup.bash
roslaunch moveit_ros_robot_arm full_robot_arm_sim.launch

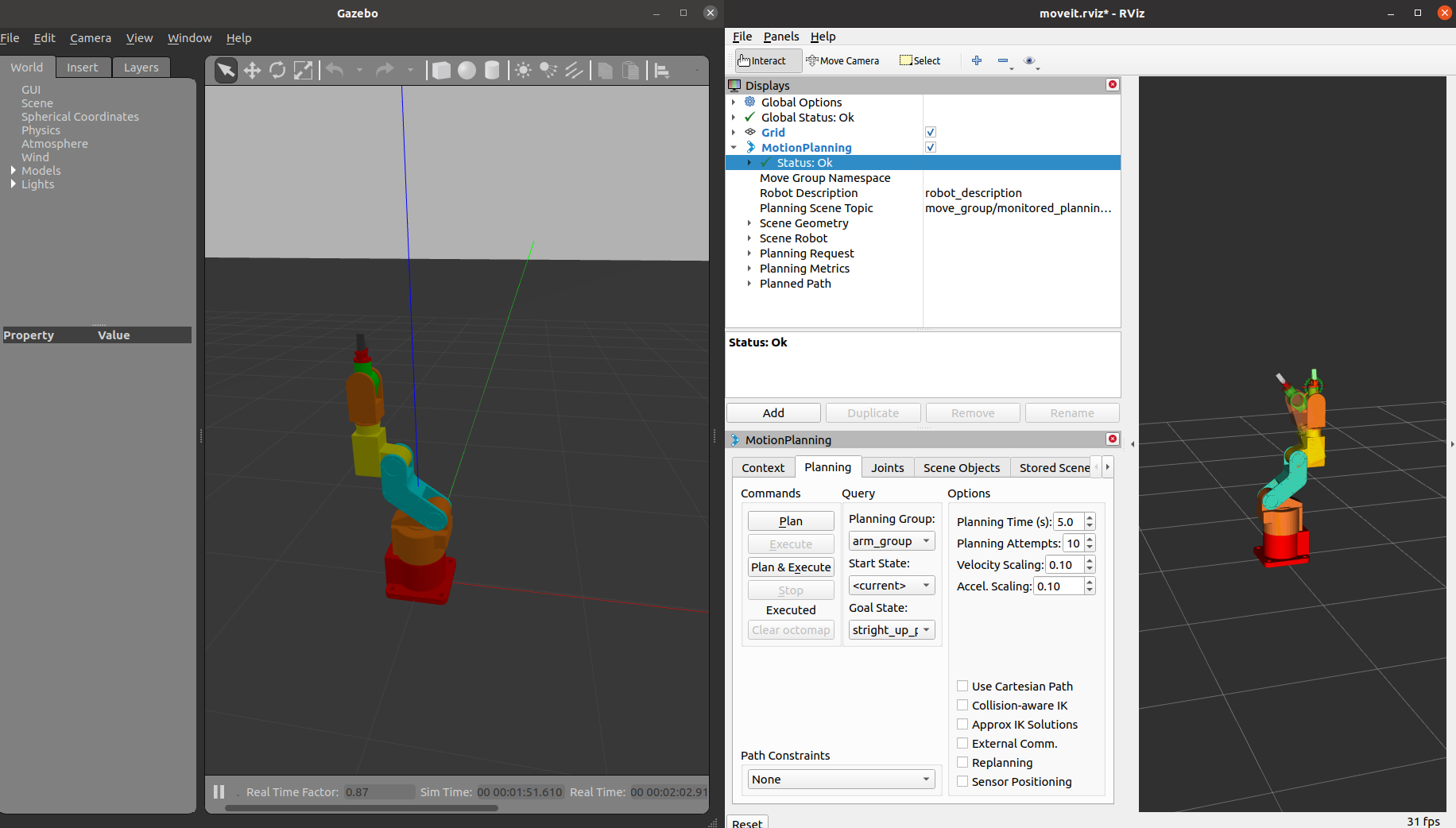

首先确定最终姿态，然后Plan规划，再Execute执行，可看到Gazebo中机械臂开始运动

image-20230707181422728

Linux Ubuntu ROS
上一篇:
ROS-Moveit使用程序控制机械臂轨迹规划（三）
下一篇:
ROS-Moveit配置（一）
本文目录
本文目录
    •

    Copyright © 2019 - 2020 yuang01 | Powered by Hexo | Theme Bamboo

    本站总访问量： 次 |
